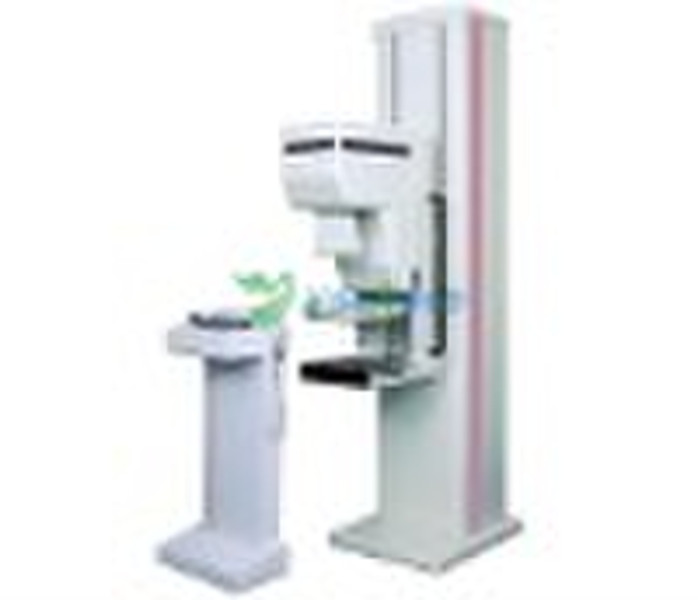

Mammography Equipment

1. X-ray tube of Mammography Equipment : Anode material molybdenum Anode type rotating Anode rev. 3000 turn/min or 9700 turn/min. Focus size large 0.3mm ; Small 0.1mm Thermal capacity 300KHU Fixed filter 0.5mm Beryllium additional filter 0.03mm molybdenum cooling oil target degree 15° degree between re. axis and focal plane 10° Power supplyAC220±10%,50Hz±1% Power 2KW Frequency 40KHz KV range 22KV 39KV mAs range 1 100mAs or (500mAs) 2. High Frequency Generator of Mammography : Power supply AC220±10%,50Hz±1% Power 1KW Frequency 40KHz KV range 22KV 35KV mAs range 1 50mAs 3. System of Mammography Equipment Power supply 6KW Display LCD Exposure Hand switch, two levels error alarm error code and message -Choosing_ all the parameters as automatic (according with breast thickness & density), manual , half automatic or AEC. -Microprocessor controlled - Light indicator for preparation .Light and sound indicators for exposure . -Time exposure1.5mAs or 5.7mAs - Automatic exposure control (AEC) -_Arm : Vertical movement : 52 cm - manual Rotating : the Angular range. ±90o - Display unit for applied pressure force. Angle , extremity (left/right) , and breast thickness displayed by scale. Compressor compressor uplift automatically after exposure focal distance 650mm focus switch it can perform magnification together with magnification unit Foot switch Dual
