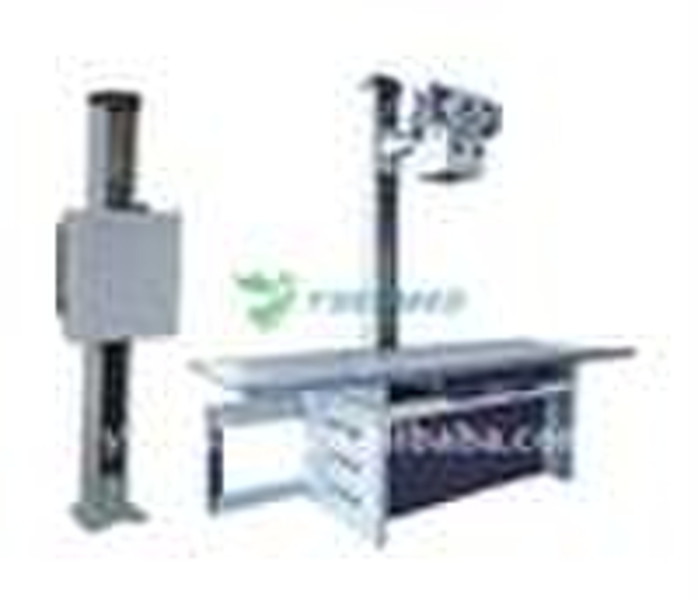

High frequency X-ray machine

Number:YSX0302 Feature: 1. Power is 220V, 600W. Unnecessary connected special power and line. Particularly suitable for rural hospitals where the power supply is poor. It is a huge breakthrough for the high-power X-ray machine in the domestic first. 2. Optional charge storage device, charge once every ,radiography 100-300 films. 3. New products focused by the Ministry of Science and Technology Main Technology parameters 1. Power voltage AC 220±10% 2. Power frequency 50HZ±1HZ 3. Power capacity ≥600W 4. Power inner resistance ≤10 5. Max tube voltage 125kv 6. High voltage putout power: 20 KHz 7. High voltage putout frequency: 30 KHz 8. Tube voltage 40 125kv 9. Currency time 0.5 125mAs 40 shift 10. Focal small focal: 1mm2, big focal: 2mm2, 11. Rated rotate speed of anode: 2800r/min 12. Radiography table (length ×brand×high) 2100× 790 ×700mm 13. Scope of the moving table: moving lengthways: 820mm moving crossive235mm 14. up and down scope of pillar: 1600mm 15. rotated pillar 0 0 ±90 0 180 0 orientation 16. distance between the table and film: ≤60mm 17. x-ray assemble rotated around the arm ±900 18. Beam filtration device fixed beam filtration grid N=40line/cm 19. Limit beam filtration device lightspot orientation optional CR image system Frame: Single tube high frequency high voltage generator Control table High frequency x-ray tube assemble High voltage cable (2) Beam filtration device
