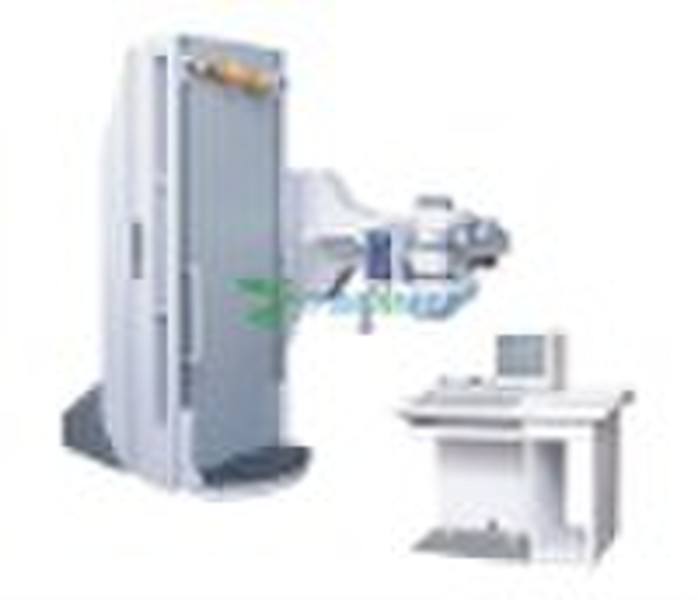

630mA TV Remote Control Medical Diagnostic X Ray R

Detail specification for 630mA Remote-control medical X-ray Unit : 1. Single diagnostic table & single x ray tube 2. Microcomputer control Single table and Single x ray tube 630mA, 125 KV X Ray equipment 3. Total 540 storage combinatin controlled by element such as KVMAS is applied radiography for the following field :three body position, fat middle and thin body type, automatic detect and display code of mistake in system 4. Fluoroscopy : 0.3-5mA continuous currency,0.1mA step ; 50 -1 10KV 1KV step continuous voltage. 5. Radiography : 50 - 630mA shift, 45-125KV 1KV step continuous voltage, Exposure time 0.01 - 6.3s26 shift . Total 432 exposure modes for users choices. 6. Power Supply : Voltage : A.C.380V , Frequency 50Hz, Capacity≥50KVA , Inner resistance ≤0.3Ω 7. X-ray Tube : double focus, small focus: 1 x 1mm ,30 KV big focus : 2 x 2mm 50 KV, 2800r/min CS15Electro-motion diagnostic tableThe table body rotation-15°0°+90° Focus to film distance11001500mm,adjustable manual 360°foot boardThe table to height870mm Stationary gridGrid density40L/cm Grid ration101 Focusing distance120cm Spot film deviceScope of moving Longitudinal moving900mm Transverse moving±120mm Specification of scope filmFull :8"×10",10"×12",11"×14",14"×14" Two: 8"×10",10"×12" Three:11"×14",14"×14" Four: 11"×14",14"×14" Medical television systemconfiguration9x-ray image intensifier made by Toshiba, CCD camera,14 high resolution monitor14"monitorresolutionHorizontal center≥1000 TV line Gray scale≥10 grades Video width>12MHZ Mode of scan625 lines,5 field,Interlaced scanning Geometry distortion<2% SNR≥40db Power supply220V 50Hz AC 9x-ray image intensifier made by Toshibaresolution≥46LP/mm Conversion modulus34cd/m2/μGY/s Contrast10% area30:1,Φ10mm area18:1
