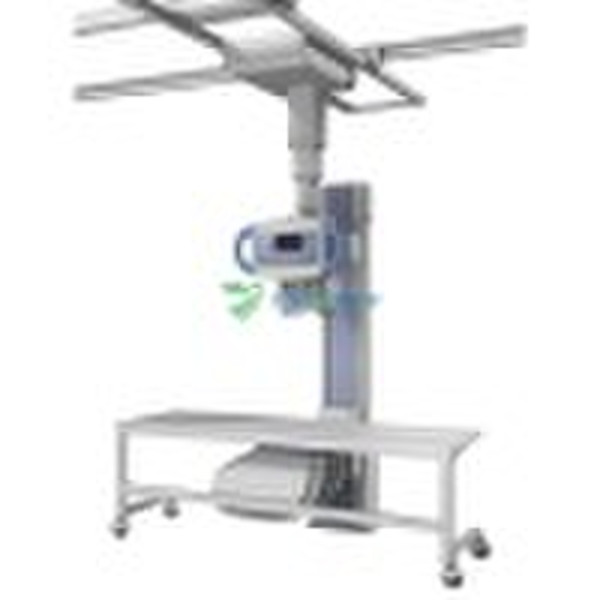

50kW Digital radiography System

50kW Digital radiography System Model No: YSXDR01 This 50kW Digital radiography System uses KODAK VHD CCD by way of camera shot sensor, KODAK VHD CCD mainly uses in the outer space scientific research, has the superelevation sensitivity and extremely reliability, ultra long service life, This DR system CCD detector compares with ordinary CCD detector has a higher sensitivity and more superior image quality, compares the flat detector has the longer service life and a higher reliability, higher spatial resolution and extremely low use-cost. This Digital radiography System runs stably and it includes: Kodak CCD Digital Detector Toshiba X-ray tube Canadian High frequency generator 14X17 Imaging amplifier Detector features: 1. Tremendous caliber lens technology , enormously reduce the exposure dose. 2. Intelligent digital image acquisition technology, doctor only need press down the hand brake 3. High speed image transmissions technology, transmission time not to 2 seconds. 4. Sensor repairs surgery automatic, Guaranteed the image long-term stable without bad spot and distort 5. Ultra long service life, theoretically Non- life limit 6. CSL scintillate screen, image clear and sharpness, other non- CSL product cannot compare with it Detector performance parameters Itemnumber1680A980AImagingAsh65535rank65535rankImagingPixels16,800,0009,800,000Resolution4.6LP/mm3.6 LP/mmImageBright≥12rank≥12rankActiveImageSize14×17inch14×17inchProcessedImageDisplay≤15s≤10sBit Depth16bit16bit Image acquisition workstation Specification: 3.0G CPU, 17 inch high resolution LCD, 1G memory, 80G hard disk, 100M net card, DVD-R/RW Allocation TableApellationspecification and explanationquantity500mA high-frequency X-ray36-50kw high frequency generator1Toshiba tube360expansion U style of arm and flat bedgridratio:1:8 180line/inch 1.8m/1.0mManual CollimatorconsoleThe programmable exposure technology contains 99 kind of proceduresimage detector1680A / 980A1Vertical Stand Dedicated power12V Vertical Stand Dedicated1USB Data transmission line12.8 meters high-speed USB Data transmission line1Image acquisition workstation (lowest configuration:)3.0G CPU, 17 inch high resolution LCD, 1G memory, 80G hard disk, 100M net card, DVD-R/RW1Image acquisition softwarepatient registration image acquisition cutting negative imageimage turning over revolving contraction and release tagging translation demonstration image window width and position adjustmentdicom image transmission dicom film printing worklist function statistical inquiry image dedicated processing technology1Image processing technology for special-purposeDynamic range optimizationt echnology1automatically carries on the compression onthe primitive image dynamic curve, achievingimage characteristic that doctor is familiar with,being convenient to diagnosisHigh-frequency image enhancement technologystrengthen image contrast , enhance detailresolution,remarkably enhance high-frequency imagequality of the bone trabecula, demonstrating more perfect.Noise abatement technology:automatically filtrate mixed frequency signal data ,obviously reduces the image noise, Enhance image signalnoise ratio, improved the image quality.Edge enhancement technology:automatically diagnostic and analytic image data, enhance image edgesharpness to make the image clearlyDigital image workstation softwareDICOM receiving, transmission, inquiry, storage, film printing, report printing1ZK-PACS/RIS and IBM serverincluding the whole function of PACS/RISOptionDry type cameraKodakSony FUJIOptionMaintenancefree maintenance for one year
