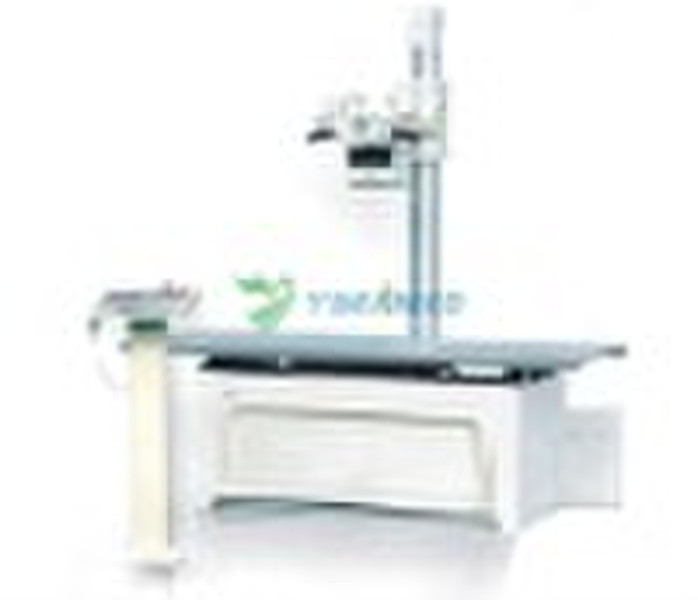

500mA x-ray machine

500mA x-ray machine Number:YSX0120 1） Micro-compute control x-ray radiography assembles: optional 500mA-600mA. 2） Total 540 storage combination controlled by element such as kV mA S is applied radiography for the following filed three body position, fat middle and thin body type, automatic detect and display cod of mistake in system, send warning signal, detect accuracy and maintain. 3） X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, x-ray tube over-hot protectorate provided, ensure x-ray tube run safely long time, improve accuracy of kV mA S. 4） Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it is beautiful. 5） Applied in all kinds of hospital for radiography such as general body、beam filtration、and chest. DepartmentTechnology parametersHigh voltage generator control table and high voltage transform assemblePowerVoltage380V±10%Capacity50Hz±1HzFrequency≥32KVAInner resistance≤0.3ΩTube voltage45-125kV step 1kVTube currency30-500mA 8 shiftExposure time0.01-5.0S 25 shiftMax rated capacitymA600500400500400kV718410684106X-ray assemblyType of x-rayXD52-30.50/125Focus1*1.2*2 double focalRated rotate speed of anode2800r/minManually beam limited deviceModelManually continuous adjusted field ofField viewView, luminosity≥100LX,1minlimit-time deviceCDG Multi function radiography tableMoving tableLengthways±600mm　Across±120mmMobile beam filtration gridGrid density28L/cmGrid ratio8:01Focusing distance100cmScope of moving≥600mmRadiography item5”*7”,8”*10”,10”*12”,11”*14”, 12”*15”,14”*14”,14”*17” Distance from surface to film75mmHeight of bed700mmMoving pillar±180°,per 90°orientation, moving lengthways ≥1500mmBulb tubeRotate the cross arm±180,ascend $ descend 1100mm Option LSJ pillar radiography frameThe scope of ascend and descend1450mmThe minimum distance from focal spot380mmRadiography item8”*10” 10”*12” 11”*14”12”*15” 14”*14” 14”*17” Fixed beam filtration roleGrid density40L/cmGrid radio10:1Focal distance180cm
