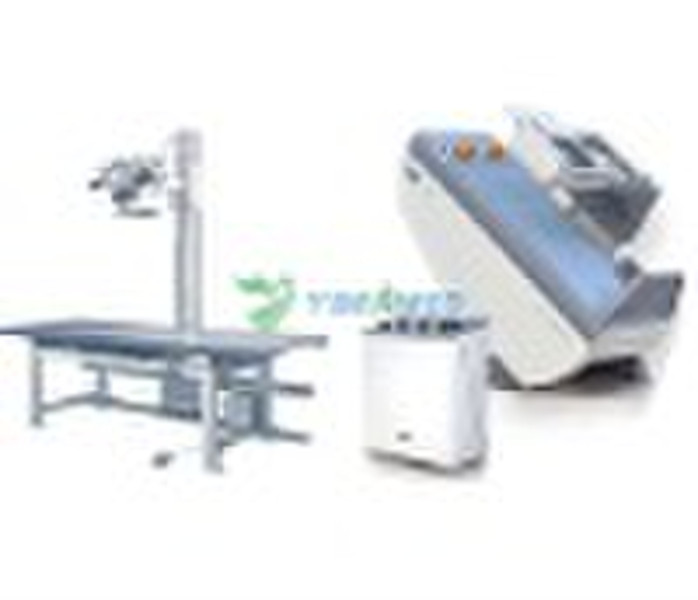

400mA Medical Diagnosis x ray machine

1 Equipped with double diagnostic table and x-ray rubes, tube voltage is 125kV, tube currency is 400mA, single direct bridge full-wave commutation. 2 X-ray tube capacity protection, anode starting-up protection and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, x-ray tube over-hot protecionare provided, ensure x-ray tube run safely long time, improve accuracy of kV mA S. 3 Bigger scope of rotation diagnostic table, movable table muli-item spot-film device, easy to operate, radiation proof, ensure operate and the tested. DepartmentTechnology parameters High voltage generator control table and high voltage transform assembleFluoroscopyTube currency0.3-5mA continuous currency Tube voltage45-110KV continuous voltage RadiographyTube currency50-400mA shift Tube voltage45-125KV continuous voltage Exposure time0.03-5s23 shift PowerVoltage380V±10% Frequency50Hz±1Hz Capacity≥30KVA Inner resistance≤0.3Ω X-ray assemblyType of x-rayXD51-20.40/125 Focus1×1.2×2 double focal Rated rotate speed of anode2800r/min Changed beam limited deviceDiagnosis table YS09DAutomatic, adjusted field of view Radiograph table YS11SManually adjusted field of view, luminosity≥100LX C15 Diagnostic tableRotate of table-15° 0° 90°automatic Moving tableAutomatic 700mm distance moving lengthways Distance of focal table400mm High of table820mm Spot film deviceScope movingUp and down600mm Left and right±100mm Forward and backward300mm Way of lockingElectromagnetism locking Radiography item5×7 8×10 10×12 11×14 CDGIMulti function radiography tableMoving tableLengthways±600mmElectromagnetism lockingAcross±120mmMobile beam filtration gridGrid density28L/cmGrid ratio81Focusing distance100cmScope of moving≥600mmRadiography item5×7,8×10,10×12,11×14, 12×15,14×14,14×17 Distance from surface to film75mmHeight of bed700mmMoving pillar±180°,per 90°orientation, moving lengthways ≥1500mmBulb tubeRotate the cross arm±180,ascend $ descend 1100mm
