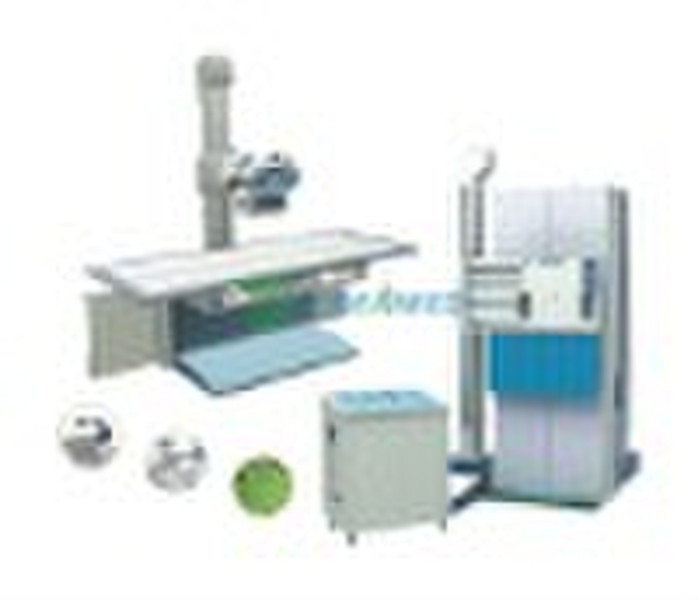

200MA medical x ray machine

Number: YSX0217 Features: Double diagnostic table and double X-ray tube with rotated anode. KV,mA and a interlocking protection and radiograph time-limited protection devices are provided. Filament for stabilizing voltage, space charge compensation and anode starting-up protection device are provided. Voltage of power supply and kV with digital display can be adjusted constantly and respectively. It becomes convenient to install without above-ground railway and be operated easily. Electromagnetism are provided for pillar lengthways, crosswise, and sleeve moving up and down. Technology Parameters DescriptionTechnology ParametersPower SupplyVoltageA.C.380V / 220V (±10%)Frequency50Hz ± 1HzCapacity20KVAPower Supply ResistanceA.C.380V≤1.0Ω; A.C.220V≤0.3ΩMaximum tube voltage125KVMaximum tube currency200mAFluoroscopyTube voltage40 110KVTube currency0.5 5mARadiographTube voltage40 125KVTube currencySmall Focus: 25mA,50mA,100mA; Big Focus:150,200mASpot film100mA (Small Focus)Time0.04 6.3s Divided into 23 grades from 0.04 6.3sHigh Voltage GeneratorCapacity15KWX-ray TubeModelXD 51-20,40 / 125FocusSmall Focus 1×1mm2 Big Focus 2×2mm2Rotated Speed of anode2800r / minDiagnostic TableScope of rotation90° 0° -5°Mobile beam filtration deviceGrid density N=28Focus Distance f o>1000mmGrid Ratio r=8Distance from surface to film≤60mmStomach & Intestine Radiograph DeviceSpot film device specification(Stomach & Intestine Radiograph)127×178mm( 5”× 7”) binary picture203×254mm( 8”×10”) binary picture254×305mm(10”×12”) binary pictureMoving lengthways (along ground railway)1500mmMoving crosswise (left & right)740mmMoving up and down700mm 1900mmWay of lockingElectromagnetism lockingBeam Limited DeviceManually single automatic multi-optionalTable for radiographLength×width×height2000×760×680(mm)Movable scope of the bedLengthways: ±450mm; Crossways: ±110Pillar moves lengthways1000mmDistance from surface to film≤60mmBulb tube moves up and down1100mm 1760mmRadiography item10”×12” 11”×14” 12”×15”
